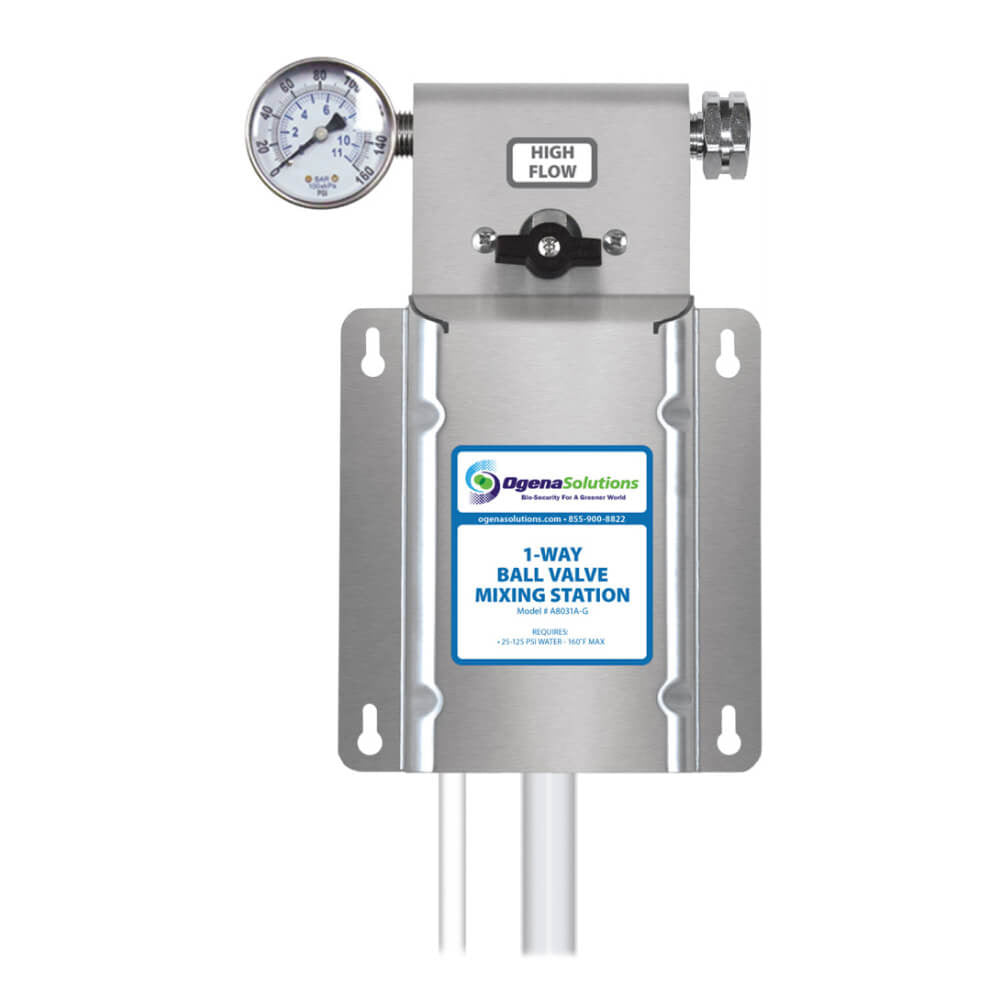

One Way Ball Valve Mixing Station

The 1-Way Ball Valve Mixing Station is a chemical proportioner for accurately diluting a chemical concentrate to the required ratio and for filling any sized container with diluted, ready-to-use chemical solution. This venturi injection system uses facility water pressure (25 - 125 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. Ball valve activation allows for hands-free dispensing. Available with several flow rates to dispense into any sized container or equipment.

• Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
• Ball valve activation allows for hands-free dispensing
• Chemical resistant components ensure years of outstanding performance with minimal maintenance
• Industrial-strength design holds up in tough environments
• The dilution ratio for each valve is set independently
• Dilution ratios controlled with precision metering tips
• Integrated pressure gauge assists with accurate tip selection
• Draws chemical concentrate from any sized container
• To ease installation, all units offer both left and right side water inlets
• Variety of flow rates for filling small to large containers:
  • High Flow Injector Body (Black): # 366470
  • Low Flow Injector Body (White): # 366473
  • Bottle Fill Injector Body (Blue): # 366476

  *(Please indicate desired flow rate when placing order)
• Stainless steel mounting bracket
• Activation ball valves
• Polypropylene injector bodies
• Integrated brass back-flow preventers
• 20 colour-coded metering tips for setting dilution ratios
